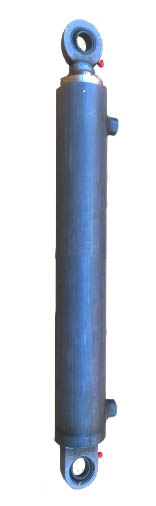

Standard Clevis Mounted Hydraulic Cylinders

Strong, dependable spherical eye mounted hydraulic cylinders for a variety of lifting, pushing, and pulling applications. All our double-acting spherical eye or bush pin hydraulic cylinders can be custom made and manufactured in full stainless steel. Buy the standard version online now, or send us your specific requirements and we can custom-make the precise spherical eye hydraulic cylinder you require. Our spherical eye cylinders produce 2.5 - 16 tons of force at 210 BAR (3000PSI). Bore sizes range from 32mm - 100mm.

SCROLL DOWN TO FIND THE CYLINDER SIZE YOU REQUIRE

PLEASE NOTE:- Delivery for these cylinders is generally 2 - 3 weeks although it may be possible to speed this up in emergency situations, please contact us for faster delivery.

1.6 Ton Spherical Eye Hydraulic Cylinders (TMSE-32-20)

1.6 Ton Spherical Eye Hydraulic Cylinders (TMSE-32-20)

This Hydraulic Cylinder will produce a maximum of 1.6 Tons on its Push side and 1 Ton on its Pull side at the maximum working pressure of 210 BAR (3000 PSI)

The Internal Bore is 32mm and the Rod Diameter is 20mm

Cylinder can be made Single Acting by adding a Breather to the Front Port

If you require these cylinders to be supplied with a matt black paint finish please select at the bottom of the page. Special Paint finishes can be also be supplied, please contact us with your requirements

Stroke Length (mm)
50mm - £102.00100mm - £109.00150mm - £114.00200mm - £120.00
250mm - £126.00300mm - £132.00400mm - £144.00500mm - £156.00

FOR FULL DIMENSIONAL INFORMATION PLEASE CLICK HERE


2.5 Ton Spherical Eye Hydraulic Cylinders (2 Ton Pull) (TMSE-40-20)

2.5 Ton Spherical Eye Hydraulic Cylinders (2 Ton Pull) (TMSE-40-20)

This Hydraulic Cylinder will produce a maximum of 2.6 Tons on its Push side and 1.9 Tons on its Pull side at the maximum working pressure of 210 BAR (3000 PSI)

The Internal Bore is 40mm and the Rod Diameter is 20mm

Cylinder can be made Single Acting by adding a Breather to the Front Port


If you require these cylinders to be supplied with a matt black paint finish please select at the bottom of the page. Special Paint finishes can be also be supplied, please contact us with your requirements

Stroke Length (mm)
100mm - £113.00150mm - £122.00200mm - £125.00250mm - £132.00
300mm - £138.00350mm - £148.00400mm - £152.00450mm - £157.00
500mm - £164.00

FOR FULL DIMENSIONAL INFORMATION PLEASE CLICK HERE


2.5 Ton Spherical Eye Hydraulic Cylinders (1.5 Ton Pull) (TMSE-40-25)

2.5 Ton Spherical Eye Hydraulic Cylinders (1.5 Ton Pull) (TMSE-40-25)

This Hydraulic Cylinder will produce a maximum of 2.6 Tons on its Push side and 1.5 Tons on its Pull side at the maximum working pressure of 210 BAR (3000 PSI)

The Internal Bore is 40mm and the Rod Diameter is 25mm

Cylinder can be made Single Acting by adding a Breather to the Front Port

If you require these cylinders to be supplied with a matt black paint finish please select at the bottom of the page. Special Paint finishes can be also be supplied, please contact us with your requirements

Stroke Length (mm)
100mm - £118.00150mm - £125.00200mm - £132.00250mm - £140.00
300mm - £158.00350mm - £156.00400mm - £161.00450mm - £168.00
500mm - £175.00550mm - £183.00600mm - £230.00

FOR FULL DIMENSIONAL INFORMATION PLEASE CLICK HERE


4 Ton Spherical Eye Hydraulic Cylinders (3 Ton Pull) (TMSE-50-25)

4 Ton Spherical Eye Hydraulic Cylinders (3 Ton Pull) (TMSE-50-25)

This Hydraulic Cylinder will produce a maximum of 4 Tons on its Push side and 3 Tons on its Pull side at the maximum working pressure of 210 BAR (3000 PSI)

The Internal Bore is 50mm and the Rod Diameter is 25mm

Cylinder can be made Single Acting by adding a Breather to the Front Port - Please select if required

If you require these cylinders to be supplied with a matt black paint finish please select at the bottom of the page. Special Paint finishes can be also be supplied, please contact us with your requirements

Stroke Length (mm)
100mm - £129.00150mm - £136.00200mm - £144.00250mm - £152.00
300mm - £159.00350mm - £167.00400mm - £175.00450mm - £182.00
500mm - £190.00550mm - £198.00600mm - £206.00800mm - £236.00
1000mm - £269.00

FOR FULL DIMENSIONAL INFORMATION PLEASE CLICK HERE


4 Ton Spherical Eye Hydraulic Cylinders (2 Ton Pull) (TMSE-50-30)

4 Ton Spherical Eye Hydraulic Cylinders (2 Ton Pull) (TMSE-50-30)

This Hydraulic Cylinder will produce a maximum of 4 Tons on its Push side and 2.6 Tons on its Pull side at the maximum working pressure of 210 BAR (3000 PSI)

The Internal Bore is 50mm and the Rod Diameter is 30mm

Cylinder can be made Single Acting by adding a Breather to the Front Port

If you require these cylinders to be supplied with a matt black paint finish please select at the bottom of the page. Special Paint finishes can be also be supplied, please contact us with your requirements

Stroke Length (mm)
150mm - £136.00200mm - £140.00250mm - £158.00300mm - £166.00
350mm - £175.00400mm - £184.00450mm - £192.00500mm - £209.00
550mm - £212.00600mm - £220.00700mm £236.00800mm - £254.00
1000mm - £290.00

FOR FULL DIMENSIONAL INFORMATION PLEASE CLICK HERE


6 Ton Spherical Eye Hydraulic Cylinders (4.5 Ton Pull) (TMSE-60-30)

6 Ton Spherical Eye Hydraulic Cylinders (4.5 Ton Pull) (TMSE-60-30)

This Hydraulic Cylinder will produce a maximum of 5.8 Tons on its Push side and 4.4 Tons on its Pull side at the maximum working pressure of 210 BAR (3000 PSI)

The Internal Bore is 60mm and the Rod Diameter is 30mm

Cylinder can be made Single Acting by adding a Breather to the Front Port

If you require these cylinders to be supplied with a matt black paint finish please select at the bottom of the page. Special Paint finishes can be also be supplied, please contact us with your requirements

Stroke Length (mm)
100mm - £154.00150mm - £162.00200mm - £172.00250mm - £185.00
300mm - £190.00350mm - £198.00400mm - £208.00450mm - £216.00
500mm - £225.00550mm - £235.00600mm - £244.00800mm - £280.00
1000mm - £317.00

FOR FULL DIMENSIONAL INFORMATION PLEASE CLICK HERE


6 Ton Spherical Eye Hydraulic Cylinders (3 Ton Pull) (TMSE-60-40)

6 Ton Spherical Eye Hydraulic Cylinders (3 Ton Pull) (TMSE-60-40)

This Hydraulic Cylinder will produce a maximum of 5.8 Tons on its Push side and 3.2 Tons on its Pull side at the maximum working pressure of 210 BAR (3000 PSI)

The Internal Bore is 60mm and the Rod Diameter is 40mm

Cylinder can be made Single Acting by adding a Breather to the Front Port

If you require these cylinders to be supplied with a matt black paint finish please select at the bottom of the page. Special Paint finishes can be also be supplied, please contact us with your requirements

Stroke Length (mm)
200mm - £195.00250mm - £206.00300mm - £218.00350mm - £230.00
400mm - £240.00450mm - £252.00500mm - £265.00550mm - £276.00
600mm - £288.00800mm - £335.001000mm - £380.00

FOR FULL DIMENSIONAL INFORMATION PLEASE CLICK HERE


6.5 Ton Spherical Eye Hydraulic Cylinders (TMSE-63-40)

6.5 Ton Spherical Eye Hydraulic Cylinders (TMSE-63-40)

This Hydraulic Cylinder will produce a maximum of 6.5 Tons on its Push side and 3.8 Tons on its Pull side at the maximum working pressure of 210 BAR (3000 PSI)

The Internal Bore is 63mm and the Rod Diameter is 40mm

Cylinder can be made Single Acting by adding a Breather to the Front Port

Stroke Length (mm)
200mm - £196.00250mm - £208.00300mm - £220.00350mm - £230.00
400mm - £241.00450mm - £252.00500mm - £265.00550mm - £276.00
600mm - £288.00800mm - £333.001000mm - £380.00

FOR FULL DIMENSIONAL INFORMATION PLEASE CLICK HERE


8 Ton Spherical Eye Hydraulic Cylinders (6 Ton Pull) (TMSE-70-35)

8 Ton Spherical Eye Hydraulic Cylinders (6 Ton Pull) (TMSE-70-35)

This Hydraulic Cylinder will produce a maximum of 8 Tons on its Push side and 6 Tons on its Pull side at the maximum working pressure of 210 BAR (3000 PSI)

The Internal Bore is 70mm and the Rod Diameter is 35mm

Cylinder can be made Single Acting by adding a Breather to the Front Port

If you require these cylinders to be supplied with a matt black paint finish please select at the bottom of the page. Special Paint finishes can be also be supplied, please contact us with your requirements

Stroke Length (mm)
100mm - £177.00150mm - £188.00200mm - £200.00250mm - £211.00
300mm - £222.00350mm - £233.00400mm - £244.00450mm - £256.00
500mm - £265.00550mm - £277.00600mm - £288.00800mm - £333.00
1000mm - £379.00

FOR FULL DIMENSIONAL INFORMATION PLEASE CLICK HERE


8 Ton Spherical Eye Hydraulic Cylinders (5 Ton Pull) (TMSE-70-40)

8 Ton Spherical Eye Hydraulic Cylinders (5 Ton Pull) (TMSE-70-40)

This Hydraulic Cylinder will produce a maximum of 8 Tons on its Push side and 5.3 Tons on its Pull side at the maximum working pressure of 210 BAR (3000 PSI)

The Internal Bore is 70mm and the Rod Diameter is 40mm

Cylinder can be made Single Acting by adding a Breather to the Front Port

If you require these cylinders to be supplied with a matt black paint finish please select at the bottom of the page. Special Paint finishes can be also be supplied, please contact us with your requirements

Stroke Length (mm)
200mm - £212.00250mm - £224.00300mm - £236.00350mm - £248.00
400mm - £260.00450mm - £272.00500mm - £285.00550mm - £296.00
600mm - £308.00800mm - £357.001000mm - £406.00

FOR FULL DIMENSIONAL INFORMATION PLEASE CLICK HERE


10 Ton Spherical Eye Hydraulic Cylinders (7 Ton Pull) (TMSE-80-40)

10 Ton Spherical Eye Hydraulic Cylinders (7 Ton Pull) (TMSE-80-40)

This Hydraulic Cylinder will produce a maximum of 10 Tons on its Push side and 7.8 Tons on its Pull side at the maximum working pressure of 210 BAR (3000 PSI)

The Internal Bore is 80mm and the Rod Diameter is 40mm

Cylinder can be made Single Acting by adding a Breather to the Front Port

If you require these cylinders to be supplied with a matt black paint finish please select at the bottom of the page. Special Paint finishes can be also be supplied, please contact us with your requirements

Stroke Length (mm)
200mm - £273.00250mm - £285.00300mm - £295.00400mm - £318.00
500mm - £340.00600mm - £363.00800mm - £408.001000mm - £450.00

FOR FULL DIMENSIONAL INFORMATION PLEASE CLICK HERE


10 Ton Spherical Eye Hydraulic Cylinders (6 Ton Pull) (TMSE-80-50)

10 Ton Spherical Eye Hydraulic Cylinders (6 Ton Pull) (TMSE-80-50)

This Hydraulic Cylinder will produce a maximum of 10 Tons on its Push side and 6.3 Tons on its Pull side at the maximum working pressure of 210 BAR (3000 PSI)

The Internal Bore is 80mm and the Rod Diameter is 50mm

Cylinder can be made Single Acting by adding a Breather to the Front Port

If you require these cylinders to be supplied with a matt black paint finish please select at the bottom of the page. Special Paint finishes can be also be supplied, please contact us with your requirements

Stroke Length (mm)
200mm - £273.00250mm - £285.00300mm - £295.00400mm - £218.00
500mm - £340.00600mm - £363.00800mm - £408.001000mm - £450.00

FOR FULL DIMENSIONAL INFORMATION PLEASE CLICK HERE


16 Ton Spherical Eye Hydraulic Cylinders (12 Ton Pull) (TMSE-100-50)

16 Ton Spherical Eye Hydraulic Cylinders (12 Ton Pull) (TMSE-100-50)

This Hydraulic Cylinder will produce a maximum of 16 Tons on its Push side and 12 Tons on its Pull side at the maximum working pressure of 210 BAR (3000 PSI)

The Internal Bore is 100mm and the Rod Diameter is 50mm

Cylinder can be made Single Acting by adding a Breather to the Front Port

If you require these cylinders to be supplied with a matt black paint finish please select at the bottom of the page. Special Paint finishes can be also be supplied, please contact us with your requirements

Stroke Length (mm)
200mm - £424.00250mm - £439.00300mm - £452.00400mm - £483.00
500mm - £512.00600mm - £542.00800mm - £625.001000mm - £688.00

FOR FULL DIMENSIONAL INFORMATION PLEASE CLICK HERE


16 Ton Spherical Eye Hydraulic Cylinders (10 Ton Pull) (TM-P100-60)

16 Ton Spherical Eye Hydraulic Cylinders (10 Ton Pull) (TM-P100-60)

This Hydraulic Cylinder will produce a maximum of 16 Tons on its Push side and 10 Tons on its Pull side at the maximum working pressure of 210 BAR (3000 PSI)

The Internal Bore is 100mm and the Rod Diameter is 60mm

Cylinder can be made Single Acting by adding a Breather to the Front Port

If you require these cylinders to be supplied with a matt black paint finish please select at the bottom of the page. Special Paint finishes can be also be supplied, please contact us with your requirements

Stroke Length (mm)
300mm - £492.00400mm - £528.00500mm - £587.00600mm - £625.00
800mm - £700.001000mm - £775.00

FOR FULL DIMENSIONAL INFORMATION PLEASE CLICK HERE


Matt Black Paint Finish

Number of Cylinders
1 - 5 £30.006 - 10 £70.0010 - 15 £150.0015 - 20 £200.00
