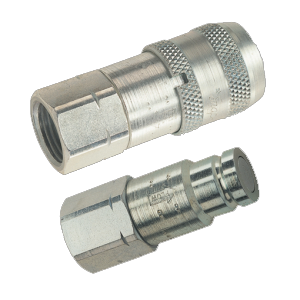

Snaptite High Pressure Flat Face Couplings (71 Series)

Snaptite High Pressure Flat Face Couplings (71 Series)

Heavy Duty Flat face Couplings - NOT ISO16028 Interchange

1/4" to 1/2" - 690 BAR Working Pressure
3/5" to 1" - 520 BAR Working Pressure

Female Carrier (BSP P)
None
1/4" BSP - 42.003/8" BSP - 39.001/2" BSP - 47.003/4" BSP - 68.00
1" BSP - 120.00
Male Nipple (BSP P)
None
1/4" BSP - 25.003/8" BSP - 21.001/2" BSP - 32.003/4" BSP - 36.00
1" BSP - 54.00

Snaptite Stainless Steel Flat Face Couplings (S71 Series)

Snaptite Stainless Steel Flat Face Couplings (S71 Series)

Heavy Duty Flat face Couplings - NOT ISO16028 Interchange
316 Stainless Steel

1/4" to 3/4" - 345 BAR Working Pressure
1" - 280 BAR Working Pressure

Female Carrier (BSP P)
None
1/4" BSP - 130.003/8" BSP - 160.001/2" BSP - 210.003/4" BSP - 310.00
1" BSP - 500.00
Male Nipple (BSP P)
None
1/4" BSP - 65.003/8" BSP - 67.001/2" BSP - 75.003/4" BSP - 112.00
1" BSP - 166.00

Flat Face Steel Quick Release Couplings (Stucchi FIRG Range)

Flat Face Steel Quick Release Couplings (Stucchi FIRG Range)

In high grade carbon steel, induction hardened
Zinc Plating and yellow passivation
Stucch Couplings also available with NPT, BSP T and SAE Threads. Viton Seal Option

Couplings are Stucchi Part Numbers FIRG with the exception of the Male Plug Halfs in 3/8" and 1/2", these are Stucchi Series A9. Couplings Interchangeable with ISO 16028 Couplings

Maximum Pressures:
1/4" to 1/2" - 300 BAR
1/2" to 1" - 250 BAR
1 1/2" - 200 BAR

Male Plug Size (BSP P) (M.FIRG)
None
1/4" 8.403/8" 8.101/2" 7.803/4" 15.00
1" 25.001 1/2" 162.00
Female Carrier (BSP P) (F.FIRG)
None
1/4" 16.703/8" 14.501/2" 15.703/4" 20.70
1" 50.001 1/2" 267.00

High Pressure Flat Face Quick Release Couplings (Stucchi A-HP Range)

High Pressure Flat Face Quick Release Couplings (Stucchi A-HP Range)

720 BAR Maximum Pressure upto 1/2" BSP
Zinc Plated Carbon Steel Construction
Interchangeable with this coupling only
No Connection or Disconnection under pressure

Stucchi Coupling Range A(4,5 or 9)HP

Female Carrier (BSP) (F.A-HP)
None
1/8" 45.701/4" 58.303/8" 59.801/2" 77.60
Male Plug (BSP) (M.A-HP)
None
1/8" 26.301/4" 23.303/8" 24.801/2" 50.00

Corrosion Resistant Flat Face Quick Release Couplers (Stucchi FIRG-Q Range)

Corrosion Resistant Flat Face Quick Release Couplers (Stucchi FIRG-Q Range)

A chaper Alternative to Stainless Steel for use in medium corrosive environments
High Resistance Carbon Steel with Nitriding Treatment and Oxidation (QPQ)
Internals in AISI 303, 302 and 420 Stainless
Interchangability to ISO 16028 - Also available with NPT Threads

Stucchi Coupling Range FIRG-QN for Standard Nitrile Seals. Also available as Stucchi FIRG-QV with Viton Seals, FIRG-QE with EPDM Seals for Skydrol Use and FIRG-QK with Kalrez Seals.

Maximum Pressures:
1/4" to 1/2" - 300 BAR
3/4" to 1 1/4" - 250 BAR
1 1/2" - 200 BAR

Female Carrier (BSP) (F.FIRG-Q)
None
1/4" 30.003/8" 28.901/2" 32.503/4" 72.40
1" 91.001 1/4" 156.001 1/2" 420.00
Male Plug (BSP) (M.FIRG-Q)
None
1/4" 13.803/8" 13.301/2" 16.503/4" 29.00
1" 42.001 1/4" 77.001 1/2" 252.00

Flat Face Stainless Steel Quick Release Couplings (Stucchi FL Range)

Flat Face Stainless Steel Quick Release Couplings (Stucchi FL Range)

Interchangeability with ISO 16028
Body and Internals in 316 Stainless Steel

Stucchi Coupling Range M.FL or F.FL

Maximum Pressures:
1/4" to 3/4" - 350 BAR
1" - 330 BAR
1 1/2" - 230 BAR

Male Plug Size (BSP P)
None
1/4" 90.003/8" 102.001/2" 103.503/4" 123.50
1" 141.00
Female Carrier Size (BSP P)
None
1/4" 132.003/8" 162.001/2" 164.003/4" 206.00
1" 317.00
