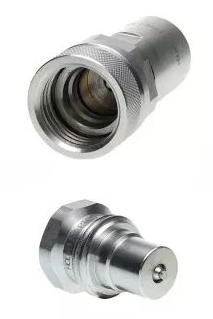

Corrosion Resistant Stucchi VEP-P Flat Face Screw Couplings

Corrosion Resistant Stucchi VEP-P Flat Face Screw Couplings

Flat Face Corrosion Resistant Quick Release Couplings
Connect and Disconnect Under Pressure

High Grade Carbon Steel Construction with Nitriding and Oxidation (QPQ) Treatment
Zinc Plated in other surface areas
External Spings in 302 Stainless
Internal Springs C72 Steel

Also Available with NPTand SAE Threads or the Stucchi VEP-HD Range in standard and flanged versions

Female Carrier
None
3/8" (VEP9P) 56.501/2" (VEP9P) 57.701/2" (VEP13P) 73.703/4" (VEP13P) 75.50
3/4" (VEP15P) 96.201" (VEP17P) 122.001 1/4" (VEP21P) 140.001 1/2" (VEP30P) 368.00
Male Plug
None
3/8" (VEP9P) 64.001/2" (VEP9P) 65.001/2" (VEP13P) 73.703/4" (VEP13P) 75.60
3/4" (VEP15P) 86.501" (VEP17P) 99.501 1/4" (VEP21P) 141.001 1/2" (VEP30P) 352.00

Steel Screw Couplings

Steel Screw Couplings

Steel with zinc plating
Hardened Steel Valve

Maximum Pressures:
1/4" - 800 BAR
3/8" - 750 BAR
1/2" - 725 BAR
3/4" - 700 BAR
1" - 525 BAR
1 1/2" - 300 BAR

Male Plug Size (BSP P)
None
1/4" 12.003/8" 14.001/2" 21.003/4" 24.00
1" 38.001 1/2" 125.00
Female Carrier Size (BSP P)
None
1/4" 16.003/8" 18.001/2" 28.003/4" 32.00
1" 47.001 1/2" 169.00

Stainless Steel Screw Couplings

Stainless Steel Screw Couplings

Complete construction is AISI 316 Stainless Steel

Maximum Pressures:
1/4" - 700 BAR
3/8" - 650 BAR
1/2" - 600 BAR
3/4" - 500 BAR
1" - 460 BAR
1 1/2" - 300 BAR

Male Plug Size (BSP P)
None
1/4" 72.003/8" 75.001/2" 107.003/4" 130.00
1" 160.00
Female Carrier Size (BSP P)
None
1/4" 125.003/8" 113.001/2" 120.003/4" 225.00
1" 294.00
