Standard Single Acting Hydraulic Cylinders

A full range of single acting pin mount hydraulic cylinders, welded construction displacement rams with standard stroke lengths. Many of our single acting hydraulic cylinders are available from stock in fast lead times and doorstep delivery. This range of high quality cylinders produce 1.5 to 6 tons of force at 210 BAR. Bore sizes range from 30mm to 60mm

Special Strokes and Stainless Steel versions also available.


SCROLL DOWN TO FIND THE CYLINDER SIZE YOU REQUIRE

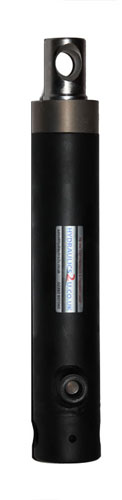

1.5 Ton Single Acting Displacement Cylinder (TM-SA30-25)

1.5 Ton Single Acting Displacement Cylinder (TM-SA30-25)

Single Acting Cylinder - Displacment Type with load / gravity return

This Hydraulic Cylinder will produce a maximum of 1.5 Tons on its Push side at its maximum working pressure of 210 BAR (3000 PSI)

The Internal Bore is 30mm and the Rod Diameter is 25mm


Stroke Length (mm)
100mm - 51.00150mm - 55.00200mm - 58.00250mm - 60.00
300mm - 63.00

FOR FULL DIMENSIONAL INFORMATION PLEASE CLICK HERE


2.5 Ton Single Acting Displacement Cylinder (TM-SA40-30)

2.5 Ton Single Acting Displacement Cylinder (TM-SA40-30)

Single Acting Cylinder - Displacment Type with load / gravity return

This Hydraulic Cylinder will produce a maximum of 2.6 Tons on its Push side at its maximum working pressure of 210 BAR (3000 PSI)

The Internal Bore is 40mm and the Rod Diameter is 30mm

Stroke Length (mm)
200mm - 69.00250mm - 73.00300mm - 78.00350mm - 81.00
400mm - 85.00550mm - 95.00

FOR FULL DIMENSIONAL INFORMATION PLEASE CLICK HERE


4 Ton Single Acting Displacement Cylinder (TM-SA50-40)

4 Ton Single Acting Displacement Cylinder (TM-SA50-40)

Single Acting Cylinder - Displacment Type with load / gravity return

This Hydraulic Cylinder will produce a maximum of 4 Tons on its Push side at its maximum working pressure of 210 BAR (3000 PSI)

The Internal Bore is 50mm and the Rod Diameter is 40mm

Stroke Length (mm)
200mm - 92.00250mm - 98.00300mm - 104.00350mm - 109.00
400mm - 114.00550mm - 131.00700mm - 147.00

FOR FULL DIMENSIONAL INFORMATION PLEASE CLICK HERE


6 Ton Single Acting Displacement Cylinder (TM-SA60-50)

6 Ton Single Acting Displacement Cylinder (TM-SA60-50)

Single Acting Cylinder - Displacment Type with load / gravity return

This Hydraulic Cylinder will produce a maximum of 5.8 Tons on its Push side at its maximum working pressure of 210 BAR (3000 PSI)

The Internal Bore is 60mm and the Rod Diameter is 50mm

Stroke Length (mm)
300mm - 138.00400mm - 152.00550mm - 175.00700mm - 198.00

FOR FULL DIMENSIONAL INFORMATION PLEASE CLICK HERE


Matt Black Paint Finish

Number of Cylinders
1 - 5 20.006 - 10 50.0010 - 15 100.0015 - 20 150.00
