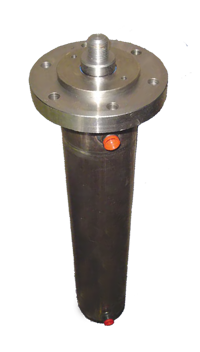

Standard Front Flange Hydraulic Cylinders

Quality single acting front flange mount hydraulic cylinders, available in a range of standard stroke lengths. Many of our front flange cylinders are currently in stock, so buy online now for fast lead times and doorstep delivery. All front flange cylinders can be supplied with a matt black paint finish, and other special paint finishes can be also be supplied - just contact us with your requirements.

This range of cylinders produces 2.5 to 16 tons of force at 210 BAR (3000PSI).Our front flange hydraulic cylinders bore sizes range from 40mm to 100mm.


SCROLL DOWN TO FIND THE CYLINDER SIZE YOU REQUIRE

2.5 Ton Double Acting Front Flange Hydraulic Cylinders (TMFF-40-20)

2.5 Ton Double Acting Front Flange Hydraulic Cylinders (TMFF-40-20)

This Hydraulic Cylinder will produce a maximum of 2.6 Tons on its Push side and 1.9 Tons on its Pull side at the maximum working pressure of 210 BAR (3000 PSI)

The Internal Bore is 40mm and the Rod Diameter is 20mm

If you require these cylinders to be supplied with a matt black paint finish please select at the bottom of the page. Special Paint finishes can be also be supplied, please contact us with your requirements

Stroke Length (mm)
100mm - 152.00200mm - 158.00300mm - 163.00400mm - 168.00
500mm - 173.00

FOR FULL DIMENSIONAL INFORMATION PLEASE CLICK HERE


4 Ton Double Acting Front Flange Hydraulic Cylinders (TMFF-50-30)

4 Ton Double Acting Front Flange Hydraulic Cylinders (TMFF-50-30)

This Hydraulic Cylinder will produce a maximum of 4 Tons on its Push side and 2.6 Tons on its Pull side at the maximum working pressure of 210 BAR (3000 PSI)

The Internal Bore is 50mm and the Rod Diameter is 30mm

If you require these cylinders to be supplied with a matt black paint finish please select at the bottom of the page. Special Paint finishes can be also be supplied, please contact us with your requirements

Stroke Length (mm)
100mm - 178.00200mm - 185.00300mm - 192.00400mm - 199.00
500mm - 209.00

FOR FULL DIMENSIONAL INFORMATION PLEASE CLICK HERE


6 Ton Double Acting Front Flange Hydraulic Cylinders (TMFF-60-35)

6 Ton Double Acting Front Flange Hydraulic Cylinders (TMFF-60-35)

This Hydraulic Cylinder will produce a maximum of 5.8 Tons on its Push side and 3.8 Tons on its Pull side at the maximum working pressure of 210 BAR (3000 PSI)

The Internal Bore is 60mm and the Rod Diameter is 35mm

If you require these cylinders to be supplied with a matt black paint finish please select at the bottom of the page. Special Paint finishes can be also be supplied, please contact us with your requirements

Stroke Length (mm)
100mm - 210.00200mm - 220.00300mm - 231.00400mm - 242.00
500mm - 252.00

FOR FULL DIMENSIONAL INFORMATION PLEASE CLICK HERE


8 Ton Double Acting Front Flange Hydraulic Cylinders (TMFF-70-40)

8 Ton Double Acting Front Flange Hydraulic Cylinders (TMFF-70-40)

This Hydraulic Cylinder will produce a maximum of 8 Tons on its Push side and 5.3 Tons on its Pull side at the maximum working pressure of 210 BAR (3000 PSI)

The Internal Bore is 70mm and the Rod Diameter is 40mm

If you require these cylinders to be supplied with a matt black paint finish please select at the bottom of the page. Special Paint finishes can be also be supplied, please contact us with your requirements

Stroke Length (mm)
100mm - 242.00200mm - 252.00300mm - 263.00400mm - 273.00
500mm - 284.00

FOR FULL DIMENSIONAL INFORMATION PLEASE CLICK HERE


10 Ton Double Acting Front Flange Hydraulic Cylinders (TMFF-80-50)

10 Ton Double Acting Front Flange Hydraulic Cylinders (TMFF-80-50)

This Hydraulic Cylinder will produce a maximum of 10.4 Tons on its Push side and 6.3 Tons on its Pull side at the maximum working pressure of 210 BAR (3000 PSI)

The Internal Bore is 80mm and the Rod Diameter is 50mm

If you require these cylinders to be supplied with a matt black paint finish please select at the bottom of the page. Special Paint finishes can be also be supplied, please contact us with your requirements

Stroke Length (mm)
100mm - 310.00200mm - 327.00300mm - 346.00400mm - 365.00
500mm - 385.00

FOR FULL DIMENSIONAL INFORMATION PLEASE CLICK HERE


16 Ton Double Acting Front Flange Hydraulic Cylinders (TMFF-100-50)

16 Ton Double Acting Front Flange Hydraulic Cylinders (TMFF-100-50)

This Hydraulic Cylinder will produce a maximum of 16 Tons on its Push side and 12 Tons on its Pull side at the maximum working pressure of 210 BAR (3000 PSI)

The Internal Bore is 100mm and the Rod Diameter is 50mm

If you require these cylinders to be supplied with a matt black paint finish please select at the bottom of the page. Special Paint finishes can be also be supplied, please contact us with your requirements

Stroke Length (mm)
100mm - 383.00200mm - 399.00300mm - 425.00400mm - 446.00
500mm - 467.00

FOR FULL DIMENSIONAL INFORMATION PLEASE CLICK HERE


Matt Black Paint Finish

Number of Cylinders
1 - 5 20.006 - 10 50.0010 - 15 100.0015 - 20 150.00
