Hydraulic Bulge Tester
Proportional Hydraulic Bulge TesterSpecial Power Unit giving upto 5 LPM Flow @ 250 BAR
Proportional Directional Control / Flow Control Valve
160mm Bore Special Bulge Test Cylinder with Bulge Former and Open Piston options
3x 100mm Bore Special Design Clamp Cylinders
3 Way Geared Flow Divider for Synchronous Clamping
Pressure Line Filter, System Relief and Adjustable Pressure Relief Valves
Full Control System with Interactive Digital Display for easy operation
Proportional Valve and Linear Transducer in main Cylinder allows cylinder movement and speed to be controlled via the electronic system.
Bulge in material is tested with either a bulge tool attached to cylinder or this is removed so the test can be carried out with an open piston moving oil directly against the material to form the bulge until it bursts. Its burst pressure and force is then recorded by the control system.
Special Hydraulic Press
100 Tonne Special Load Cell Test PressIncorportates Enerpac 100 Tonne Cylinder
Adjustable Floating Platen
Electric Pump for Quick Extension
Hand Pump for Fine Control Over Load
Calibrated Load Cell linked to PC for highly accurate load test
Specifically designed to test and calibrate high capacity load cells
Floating Platen allows for complete flexibility in setup meaning any special design load cells to be tested and calibrated
40kW Hydraulic Power Unit and Cylinders
Special Power Unit for Press incuded:40kW Electric Motor
180 LPM Flow from Triple Gear Pump
CETOP 8 Valves
12" Bore Double Acting Main Tie Rod Cylinder
Clamping and Punching Cylinders
4" Bore Hydraulic Hoses and Quick Release Couplings
Special Pneumatic Test Rig
Pneumatic Test Rig for testing Valve and Cylinder Operation24V, 110V and 240V Solenoid Valve Testing
Valves are Auto Cycled; Adjustable Time or Cycles
Used to Test Valves upto 15,000 LPM Flow
NUMATICS and MAC Valve Bases on Rig
Tests any other Pneumatic Valve
Tests Pressure and Flow
Tests any Pneumatic Cylinder
Tests any Air / Air Booster

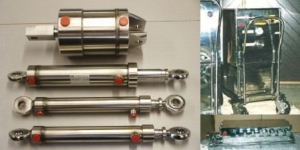

Stainless Steel Power Unit & Cylinders
Pharmaceutical 316 Stainless Steel Power Unit & CylindersAir motor power unit with air pilot valves
Motor and controls enclosed in stainless
Power unit tank, skid and covers in stainless polished to a mirror finish
Flow divider for syncronous lifting in stainless (external and internal)
All valves in stainless
Used with special vegetable oil
Special Cutter - Portable Scissor Cutter Head
7.4 Tonne Scissor Cutter Head supplied with Portable Enerpac PUJ Compact PumpHydraulic Valve and Electrical Solenoid Control mounted in Handle on Cutter
Supplied with all Hoses, Cables and Fittings
Click Image to go to Cutter Page
This unit allowed movement whilst cutting. The buttons on the 2 handles operates the pump and the hydraulic valve mounted on the cutter. The 2 button system ensures maximum safety by ensuring that both the operators hands are on the buttons. This system allows maximum portability and easy of use without having to manually pump this large stroke cutter head.
Special Cutter - Portable Cutter Head
Enerpac WHC4000 Cutter supplied with Portable PUJ Compact PumpHydraulic Valve and Electrical Solenoid Control mounted in Handle on Cutter
Supplied with all Hoses, Cables and Fittings
Click Image to go to Product
This unit allowed movement whilst cutting. The button on the end of the second handle operates the pump and the hydraulic valve. This system allows maximum portability and easy of use without having to manually pump this large stroke cutter head.
Special Cutter - Bench Mounted
Bench Mounted Cutter for Cutting Golf ClubsUses Enerpac WHC1250 Equivalent Cutter
Integral Perspex Guard with Safety Guard Interlock Pneumatic Valves
Main System Pneumatic Valve to control air feed to Enerpac Xvari (XA11) Pump
Click Image to go to Product
Higth Speed Xvari Pump for high cutting speed. Guard ensures that Pump cannot be operated unless the guard is shut. If the guard is opened during operation, air feed to pump is cut and the blade stops moving.
