Aron Pilot Operated Check Valve (AM3-UP)

Aron Pilot Operated Check Valve (AM3-UP)

Aron CETOP 3 Pilot Operated Check Valve - 350 BAR Maximum Working Pressure - 40LPM Maximum Flow

This module will provide a locking feature which holds oil against the check valve. This lock is released when oil is passed through the opposite A or B line by way of the pilot.

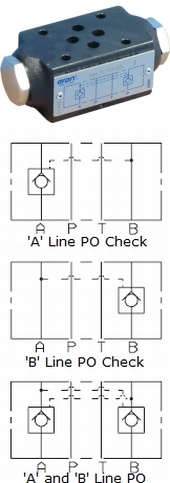

Please select the required version, Check on either A or B Line or the Double Acting Version which checks on A and B Lines as per the Symbols below image.

CHECK OUR RANGE OF ATOS HYDRAULIC VALVES, SAME HIGH QUALITY PRODUCT UPTO 20% CHEAPER ON FASTER LEAD TIMES - CLICK THE RELATED PRODUCT LICK BELOW TO GO DIRECTLY TO THE ATOS EQUIVALENT PRODUCT PAGE

Check Valve Versions
'A' Line (AM3-UPA) £117.00'B' Line (AM3-UPB) £117.00'A' and 'B' Line (AM3-UPAB) £136.00

FOR VALVE MODULE DATA SHEET PLEASE CLICK HERE

Aron Pressure Relief Module (AM3-VM)

Aron Pressure Relief Module (AM3-VM)

Aron CETOP 3 Pressure Relief Module

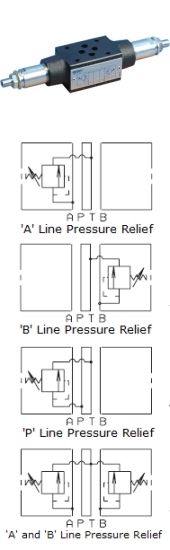

Sets maximum pressure in either 'A', 'B' or 'P' Lines. Option to set maximum pressure in 'A' and 'B' Lines. Please select required option as per the hydraulic symbol below the image and then select your required pressure range.

Please select the required Pressure Range of the Valve Module. Use the Second Pressure Option ONLY for the Double Relief Valve ('A' and 'B' Line) Version. With the Double Relief Valve the First pressure option will be on the 'A' Line. This option will also be used on the 'A', 'B' or 'P' Lines for the single valve versions.

CHECK OUR RANGE OF ATOS HYDRAULIC VALVES, SAME HIGH QUALITY PRODUCT UPTO 20% CHEAPER ON FASTER LEAD TIMES - CLICK THE RELATED PRODUCT LICK BELOW TO GO DIRECTLY TO THE ATOS EQUIVALENT PRODUCT PAGE

Relief Valve Version
'A' Line (AM3-VMA) £158.00'B' Line (AM3-VMB) £158.00'P' Line (AM3-VMP) £158.00'A' and 'B' Line (AM3-VMAB) £222.00
Pressure Range Options
(C1) 50 BAR Maximum(C2) 150 BAR Maximum(C3) 320 BAR Maximum
'B' Line Pressure Range Option ('A' and 'B' Version Only)
Not Required
(C1) 50 BAR Maximum(C2) 150 BAR Maximum(C3) 320 BAR Maximum

FOR VALVE MODULE DATA SHEET PLEASE CLICK HERE

Aron Flow Control Module (AM3-QF)

Aron Flow Control Module (AM3-QF)

Aron Flow Control Module for use with CETOP3 Control Valves

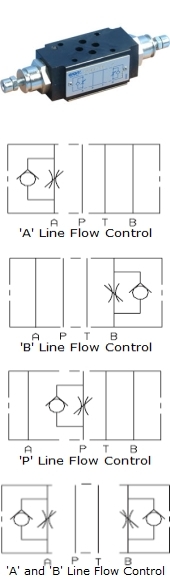

This module can be used to regulate flow in the 'A' 'B' or 'P' Lines. The Double Acting Version allows flow to be regulated in both the 'A' and 'B' Lines. Please Select the version required as per the hydraulic symbols below image.

350 BAR Maximum Working Pressure, 250 BAR Maximum Adjustable Pressure. Flow is regulated by 8 turns on screw. Valve operates by metering flow in but can be used to meter flow out by flipping 180 degrees. Maximum Input Flow is 40 LPM.

CHECK OUR RANGE OF ATOS HYDRAULIC VALVES, SAME HIGH QUALITY PRODUCT UPTO 20% CHEAPER ON FASTER LEAD TIMES - CLICK THE RELATED PRODUCT LICK BELOW TO GO DIRECTLY TO THE ATOS EQUIVALENT PRODUCT PAGE

Valve Module Version
'A' Line Flow Control (AM3-QFA) £136.00'B' Line Flow Control (AM3-QFB) £136.00'P' Line Flow Control (AM3-QFP) £136.00'A' and 'B' Lines Flow Control (AM3-QFAB) £152.00

FOR VALVE MODULE DATA SHEET PLEASE CLICK HERE
