700 BAR Stainless Steel Cylinders

700 BAR Stainless Steel Cylinders

Special hydraulic mast jack cylinders - for in-mast fixing, these cylinders are made in 316 stainless, rated to 700 BAR with front flange mounting for fixing in the mast base. Capable of generating 10 tonnes force at 700 BAR they have a 105mm stroke and are based on an Enerpac RC104 cylinder offering the maximum corrosion protection for permanent fixing inside the mast. Supplied with 2 hoses and stainless fittings with a fully stainless coupling for attaching a pump.

Specification:
. 316 Stainless Construction
. 700 BAR working pressure.
. 105mm Stroke
. Special Front Flange

Custom-made for you
All stainless hydraulic cylinders are manufactured to order so any rod sizes, rod ends and strokes can be accomodated. Large bore sizes are also available on request. Contact us with your requirements. - enquiries@hydraulics2u.co.uk

Stainless Steel Cylinders

Stainless Steel Cylinders

At Hydraulics 2U, are proud of our range of stainless steel cylinders for use in the marine, pharmaceutical and food industries. These cylinders are made to order so any stroke, mounting and bore configuration is possible

Features include:
. Suitable for corrosive environments
. Compatible with Parker, Miller, Helipebs, etc.
. Can be used with corrosive fluids such as water and Skydrol
. Special seals available including Viton and EPDM

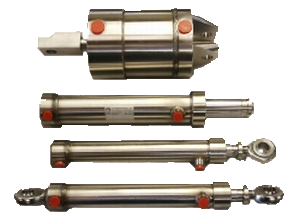

The examples in the picture were used in a pharmaceutical application and were operated with a special vegetable oil.

E-mail: enquiries@hydraulics2u.co.uk with your requirements
