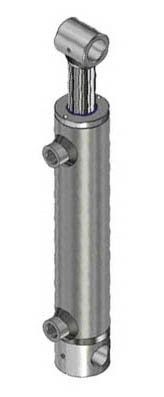

Standard Pin Mount Hydraulic Cylinders

Discover the affordable, robust pin mount hydraulic cylinders range at Hydraulics2U. All our welded construction displacement rams are available in a range of standard stroke lengths. Buy your pin mount hydraulic cylinder online and save time, money and hassle.

This range of cylinders produce 1.5 - 16 tons of force at 210 BAR (3000PSI). The pin mount cylinder bore sizes range from 32mm - 100mm.


SCROLL DOWN TO FIND THE CYLINDER SIZE YOU REQUIRE

1.5 Ton Double Acting Pin Mount Hydraulic Cylinders (TMDC-C-32-20)

1.5 Ton Double Acting Pin Mount Hydraulic Cylinders (TMDC-C-32-20)

This Hydraulic Cylinder will produce a maximum of 1.6 Tons on its Push side and 1 Ton on its Pull side at the maximum working pressure of 210 BAR (3000 PSI)

The Internal Bore is 32mm and the Rod Diameter is 20mm

Stroke Length (mm)
50mm - 69.00100mm - 70.00150mm - 73.00200mm - 76.00
300mm - 79.00

FOR FULL DIMENSIONAL INFORMATION PLEASE CLICK HERE


2.5 Ton Double Acting Pin Mount Hydraulic Cylinders (TMDC-C-40-25)

2.5 Ton Double Acting Pin Mount Hydraulic Cylinders (TMDC-C-40-25)

This Hydraulic Cylinder will produce a maximum of 2.6 Tons on its Push side and 1.5 Tons on its Pull side at the maximum working pressure of 210 BAR (3000 PSI)

The Internal Bore is 40mm and the Rod Diameter is 25mm

Stroke Length (mm)
100mm - 75.00200mm - 80.00300mm - 83.00400mm - 87.00
500mm - 94.00

FOR FULL DIMENSIONAL INFORMATION PLEASE CLICK HERE


4 Ton Double Acting Pin Mount Hydraulic Cylinders (TMDC-C-50-30)

4 Ton Double Acting Pin Mount Hydraulic Cylinders (TMDC-C-50-30)

This Hydraulic Cylinder will produce a maximum of 4 Tons on its Push side and 2.6 Tons on its Pull side at the maximum working pressure of 210 BAR (3000 PSI)

The Internal Bore is 50mm and the Rod Diameter is 30mm

Stroke Length (mm)
100mm - 92.00200mm - 96.00300mm - 99.00400mm - 107.00
500mm - 113.00600mm - 118.00700mm - 125.00

FOR FULL DIMENSIONAL INFORMATION PLEASE CLICK HERE


6 Ton Double Acting Pin Mount Hydraulic Cylinders (TMDC-C-60-30)

6 Ton Double Acting Pin Mount Hydraulic Cylinders (TMDC-C-60-30)

This Hydraulic Cylinder will produce a maximum of 5.8 Tons on its Push side and 4.4 Tons on its Pull side at the maximum working pressure of 210 BAR (3000 PSI)

The Internal Bore is 60mm and the Rod Diameter is 30mm

Stroke Length (mm)
100mm - 98.00200mm - 100.00300mm - 108.00400mm - 115.00
500mm - 119.00600mm - 129.00700mm - 134.00

FOR FULL DIMENSIONAL INFORMATION PLEASE CLICK HERE


8 Ton Double Acting Pin Mount Hydraulic Cylinders (TMDC-C-70-40)

8 Ton Double Acting Pin Mount Hydraulic Cylinders (TMDC-C-70-40)

This Hydraulic Cylinder will produce a maximum of 8 Tons on its Push side and 5.3 Tons on its Pull side at the maximum working pressure of 210 BAR (3000 PSI)

The Internal Bore is 70mm and the Rod Diameter is 40mm

Stroke Length (mm)
200mm - 132.00300mm - 142.00400mm - 151.00500mm - 163.00
600mm - 171.00700mm - 181.00

FOR FULL DIMENSIONAL INFORMATION PLEASE CLICK HERE


10 Ton Double Acting Pin Mount Hydraulic Cylinders (TMDC-C-80-40)

10 Ton Double Acting Pin Mount Hydraulic Cylinders (TMDC-C-80-40)

This Hydraulic Cylinder will produce a maximum of 10.4 Tons on its Push side and 7.8 Tons on its Pull side at the maximum working pressure of 210 BAR (3000 PSI)

The Internal Bore is 80mm and the Rod Diameter is 40mm

Stroke Length (mm)
200mm - 151.00300mm - 161.00400mm - 166.00500mm - 170.00
600mm - 187.00700mm - 199.00

FOR FULL DIMENSIONAL INFORMATION PLEASE CLICK HERE


16 Ton Double Acting Pin Mount Hydraulic Cylinders (TMDC-C-100-50)

16 Ton Double Acting Pin Mount Hydraulic Cylinders (TMDC-C-100-50)

This Hydraulic Cylinder will produce a maximum of 16 Tons on its Push side and 12 Tons on its Pull side at the maximum working pressure of 210 BAR (3000 PSI)

The Internal Bore is 100mm and the Rod Diameter is 50mm

Stroke Length (mm)
300mm - 240.00400mm - 250.00500mm - 264.00700mm - 288.00

FOR FULL DIMENSIONAL INFORMATION PLEASE CLICK HERE


Matt Black Paint Finish

Number of Cylinders
1 - 5 20.006 - 10 50.0010 - 15 100.0015 - 20 150.00
