Hydraulic Cylinders

 |

Enerpac Single Acting Cylinders

 |  Enerpac Telescopic Cylinders

Enerpac RT Telescopic Long Stroke Cylinders

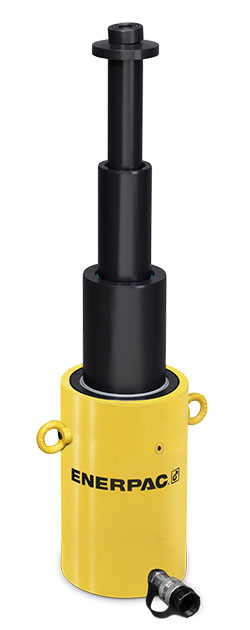

The Enerpac RTsingle acting telescopic cylinders offer a range of long stroke 2 or 3 stage lifting to maximise lifting height from the lowest collapsed heights. These telescopic cylinders offer lifting capacity from 13 to 30 tonne with strokes up to 600mm. Featuring Nitro-Carbonised treatment for the most extreme conditions these telescopic rams are ideal for confined spaces for long load lifting in a single movement. Suitable for any application with restricted space use these precision made telescopic hydraulic cylinders to get the job you need done.

SCROLL DOWN TO FIND THE CYLINDER SIZE YOU REQUIRE

15 Tonne Telescopic Cylinders

15 Tonne Telescopic Cylinders

Enerpac 700 BAR 13 & 18 Tonne Single Acting Telescopic Hydraulic Cylinders
2 Stage Lift at 13 Tonnes, 3 Stage Lift at 16 Tonnes

2 Stage Lift Cylinder

Maximum Stroke 270mm
135mm Stroke on 1st Section (35 Tonnes) then upto
270mm Stroke on 2nd Section (13.5 Tonne)


3 Stage Lift Cylinder

435mm Total Stroke over 3 Sections
145mm Stroke on 1st Section (91 Tonnes) then upto
290mm Stroke on 2nd Section (40 Tonnes) then upto
435mm Stroke on 3rd Section (16 Tonnes)

Suitable for use with all 700 BAR pumps in our Hydraulic Pumps Product Section

No of Stages
RT1510 - 2 Stage Telescopic Cylinder £2,050.00RT1817 - 3 Stage Telescopic Cylinder £2,800.00

FOR FULL DIMENSIONAL INFORMATION PLEASE CLICK HERE

20 Tonne Telescopic Cylinders

20 Tonne Telescopic Cylinders

Enerpac 700 BAR 20 Tonne Telescopic Hydraulic Cylinders
2 and 3 Stage Lift Options (19.5 Tonnes Smallest Final Section)

2 Stage Lift Cylinder

Maximum Stroke of 300mm over 2 Sections
150mm Stroke on 1st Section (50 Tonnes) then upto
300mm Stroke on 2nd Section (19.5 Tonne)


3 Stage Lift Cylinder

Maximum Stroke of 500mm over 3 Sections
170mm Stroke on 1st Section (121 Tonnes) then upto
340mm Stroke on 2nd Section (48 Tonnes) then upto
500mm Stroke on 3rd Section (19.5 Tonnes)

Suitable for use with all 700 BAR pumps in our Hydraulic Pumps Product Section

No. of Stages
RT2111 - 2 Stage Telescopic Cylinder £2,660.00RT2119 - 3 Stage Telescopic Cylinder £4,085.00

FOR FULL DIMENSIONAL INFORMATION PLEASE CLICK HERE

30 Tonne Telescopic Cylinder

30 Tonne Telescopic Cylinder

Enerpac 700 BAR 30 Tonne Telescopic Hydraulic Cylinders
2 and 3 Stage Lift Options (30 Tonnes Smallest Final Section)

2 Stage Lift Cylinder

Maximum Stroke of 300mm over 2 Sections
150mm Stroke on 1st Section (77 Tonnes) then upto
300mm Stroke on 2nd Section (30 Tonne)


3 Stage Lift Cylinder

Maximum Stroke of 600mm over 3 Sections
200mm Stroke on 1st Section (195 Tonnes) then upto
400mm Stroke on 2nd Section (77 Tonnes) then upto
600mm Stroke on 3rd Section (30 Tonnes)

Suitable for use with all 700 BAR pumps in our Hydraulic Pumps Product Section

No. of Stages
RT3311 - 2 Stage Telescopic Cylinder £3,600.00RT3323 - 3 Stage Telescopic Cylinder £5,500.00

FOR FULL DIMENSIONAL INFORMATION PLEASE CLICK HERE
